Dixon ZTR-SpeedZTR 42CE

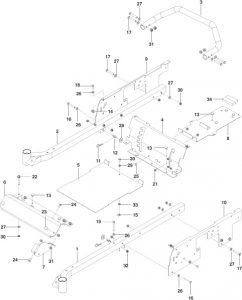

Frame
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 525 454703 | FRAME TUBE, LT BLU | ||
| 2 | 525 454903 | FRAME TUBE, RT BLU | ||
| 3 | 574 354703 | BAR, IMPACT BLU | ||
| 4 | 575 661303 | PANEL, SEAT SUPPORT BLU | ||
| 5 | 577 677403 | FOOT PLATE BLU | ||
| 6 | 574 779802 | FOOT REST BLU | ||
| 7 | 525 605502 | BRACKET, FRONT DECK BLK | ||
| 8 | 525 798402 | SUPPORT, TANK BLK | ||
| 9 | 575 328403 | PLATE, RT BLU | ||
| 10 | 575 328303 | PLATE, RT BLU | ||
| 11 | 539 976989 | HAIRPIN | ||
| 12 | 532 195161 | STUD w/ ANTI-ROTATE | ||
| 13 | 539 102587 | GROMMET, BUMPER | ||
| 14 | 539 104763 | RETAINER, U TYPE 5/16 | ||
| 15 | 532 174814 | RETAINER, U TYPE 1/4 | ||
| 16 | 539 976938 | HCS 5/16-18 x 2 1/4 | ||
| 17 | 539 990629 | HCS 3/8-16 x 2 1/4 | ||
| 18 | 539 976934 | HCS 5/16-18 x 3/4 | ||
| 19 | 539 101721 | HCS 5/16-18 x 2 3/4 | ||
| 20 | 539 990580 | HCS 1/4-20 x 3/4 | ||
| 21 | 539 990362 | SCREW 1/4-20 x 5/8 SLF TAP | ||
| 22 | 539 111976 | BOLT 3/8-16 x 25/8 THD FRM | ||
| 23 | 539 990645 | RHSNB 3/8-16 x 1 | ||
| 24 | 539 111785 | RHSNB 3/8-16 x 3/4 | ||
| 25 | 539 990316 | RHSNB 5/16-18 x 3/4 | ||
| 26 | 539 990188 | WASHER 5/16 SAE FLT | ||
| 27 | 539 990122 | WASHER 3/8 SAE FLT | ||
| 28 | 539 976982 | WASHER 5/8 SAE FLT | ||
| 29 | 539 990055 | WASHER 1/4 FLT SAE | ||
| 30 | 539 200282 | NUT 3/8-16 HEX JAM NYLOC | ||
| 31 | 521 996501 | NUT 3/8-16 HEX JAM NYLOC | ||
| 32 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC |

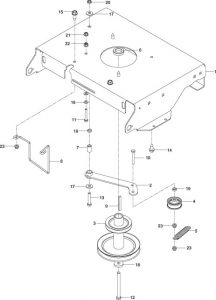

Engine Plate
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 578 156303 | PLATE, ENGINE BLU | ||
| 2 | 574 497504 | ARM IDLER | ||
| 3 | 539 120812 | PULLEY, IDLER | ||
| 4 | 574 382001 | PULLEY, ENGINE | ||
| 5 | 539 116350 | SPRING 3 1/2 | ||
| 6 | 539 114387 | SPACER | ||
| 7 | 539 115270 | BUSHING, METAL | ||
| 8 | 581 770001 | KEEPER, BELT | ||
| 9 | 539 917033 | KEY 1/4 SQ x 2 1/2 LG | ||
| 10 | 539 101350 | HCS 3/8-16 x 3 TPBLT | ||
| 11 | 539 976937 | HCS 5/16-18 x 2 | ||
| 12 | 574 882801 | HCS 7/16-20 x 4 | ||
| 13 | 539 990588 | HCS 3/8-16 x 2 | ||
| 14 | 532 120616 | HHFS 3/8-16 x 1 THD FRM | ||
| 15 | 539 107476 | BOLT 3/8-16 x 1 THD FRM | ||
| 16 | 539 990188 | WASHER 5/16 SAE FLT | ||
| 17 | 539 990517 | WASHER 3/8 STD FLT | ||
| 18 | 539 115546 | WASHER | ||
| 19 | 539 109562 | WASHER 3/8 x 3/4 SPEC | ||
| 20 | 539 200282 | NUT 3/8-16 HEX JAM NYLOC | ||
| 21 | 539 990585 | NUT 5/16-18 HEX WHIZLK | ||
| 22 | 539 112899 | NUT 5/16-18 HEX WHIZLK | ||
| 23 | 521 996501 | NUT 3/8-16 HEX FLG NYLOC | ||
| 575 934901 | GUARD, MUFFLER | NOT SHOWN | ||
| 539 133026 | GUARD, ENGINE SCREEN | NOT SHOWN |

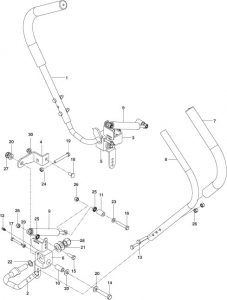

Steering
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 539 120159 | LOWER LEVER, RT | ||
| 2 | 539 120162 | LOWER LEVER, LT | ||
| 3 | 539 117949 | SUPPORT, STEER CNTRL RT | ||
| 4 | 539 117950 | SUPPORT, STEER CNTRL LT | ||
| 5 | 539 120984 | PIVOT, RT | ||
| 6 | 539 120983 | PIVOT, LT | ||
| 7 | 539 120899 | GRIP | ||
| 8 | 539 120160 | LEVER, UPPER | ||
| 9 | 539 114453 | DAMPENER | ||
| 10 | 539 120956 | BUSHING 1/2 ID x 3/4 OD | ||
| 11 | 539 119087 | BUSHING | ||
| 12 | 539 115638 | ZERK | ||
| 13 | 539 976935 | HCS 5/16-18 x 1 1/2 | ||
| 14 | 539 101332 | HCS 1/2-13 x 2 3/4 | ||
| 15 | 539 990209 | HCS 5/16-18 x 1 | ||
| 16 | 539 976937 | HCS 5/16-18 x 2 | ||
| 17 | 539 991003 | HCS 1/4-20 x 1 3/4 | ||
| 18 | 539 990316 | RHSNB 5/16-18 x 3/4 | ||
| 19 | 539 108396 | HCS 5/16-18 x 2 1/2 TPBLT | ||
| 20 | 539 990250 | WASHER 1/2 SAE | ||
| 21 | 539 911121 | WASHER 5/8 BELLEVILLE | ||
| 22 | 539 115570 | WASHER, SPECIAL | ||
| 23 | 539 990188 | WASHER 5/16 SAE FLT | ||
| 24 | 539 990196 | NUT 5/16-18 HEX | ||
| 25 | 539 990585 | NUT 5/16-18 HEX WHIZLK | ||
| 26 | 539 990717 | NUT 5/16-18 HEX NYLOC | ||
| 27 | 539 108010 | NUT 1/2-13 JAM NYLOC GR 2 | ||
| 28 | 539 110340 | NUT 5/8-11 NYLOC | ||
| 29 | 539 991112 | NUT 1/4-20 JAM | ||
| 30 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC |

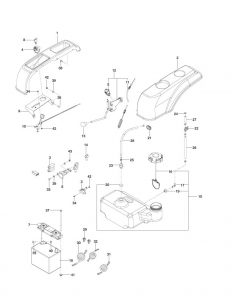

Ignition
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 539 120193 | FENDER, RH | ||
| 2 | 539 120192 | FENDER, LH | ||
| 3 | 532 109553 | SWITCH | ||
| 4 | 539 107541 | SWITCH, IGNITION | ||
| 5 | 532 176138 | SWITCH, INTERLOCK | ||
| 6 | 539 101714 | SOLENOID | ||
| 7 | 539 107628 | HOLD DOWN, BATTERY | ||
| 8 | 539 107544 | KEY, IGNITION | ||
| 9 | 539 120178 | PANEL, CONTROL BLU | ||
| 10 | 539 120222 | CABLE, THROTTLE | ||
| 11 | 532 193235 | CABLE, CLUTCH | ||
| 12 | 575 661501 | CLUTCH ASSY w/ CABLE | ||
| 13 | 539 132624 | KNOB, CLUTCH | ||
| 14 | 539 116400 | TERMINAL COVER, SM | ||
| 15 | 576 646403 | TANK ASSY, FUEL | ||
| 16 | 575 018101 | CAP, FUEL w/ TETHER | ||
| 17 | 539 110432 | ELBOW | ||
| 18 | 539 102436 | BATTERY | ||
| 19 | 539 105245 | GROMMET, RUBBER | ||
| 20 | 576 618201 | GROMMET, CHECK VALVE | ||
| 21 | 539 105974 | GROMMET, RUBBER | ||
| 22 | 539 916325 | VALVE, FUEL | ||
| 23 | 576 618101 | VALVE, FUEL CHECK | ||
| 24 | 539 912222 | CLAMP, HOSE | ||
| 25 | 575 436501 | CLAMP, HOSE | ||
| 26 | 539 115736 | HOSE 1/4 x 8 | ||
| 27 | 539 121486 | HOSE, 1/4 x 2 | ||
| 28 | 574 521305 | HOSE, FUEL, 3/16" x 20" | ||
| 29 | 505 280001 | WIRE TIE w/ CLIP | ||
| 30 | 539 104974 | CABLE, POSITIVE 31" | ||
| 31 | 539 103306 | CABLE, POSITIVE 19" | ||
| 32 | 539 110068 | CABLE, NEGATIVE 25" | ||
| 33 | 874 780412 | HCS 1/4-20 x 3/4 | ||
| 34 | 539 976952 | SCREW #10-24 x 5/8 | ||
| 35 | 539 990316 | RHSNB 5/16-18 x 3/4 | ||
| 36 | 539 990074 | RHSNB 1/4-20 x 3/4 GR 2 | ||
| 37 | 532 145211 | BOLT 1/4 x 7 1/2 | ||
| 38 | 539 990362 | SCREW 1/4-20 x 5/8 SLF TAP | ||
| 39 | 539 990055 | WASHER 1/4 FLT SAE | ||
| 40 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC | ||
| 41 | 539 107629 | NUT 1/4 PUSH NYLON | ||
| 42 | 539 976977 | NUT #10-24 HEX NYLOC | ||
| 43 | 873 800400 | NUT 1/4-20 HEX NYLOC | ||
| 585 507101 | WIRING HARNESS | NOT SHOWN |

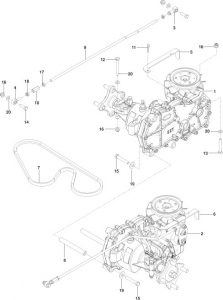

Hydraulic Pump – Motor
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 539 120152 | HYDRO, RT | ||
| 2 | 539 120153 | HYDRO, LT | ||
| 3 | 539 115729 | ROD END, RT | ||
| 4 | 539 116690 | ROD END, MALE LT | ||
| 5 | 539 120157 | RELEASE HANDLE, RT | ||
| 6 | 539 120156 | RELEASE HANDLE, LT | ||
| 7 | 575 852401 | BELT, EZT | ||
| 8 | 574 356501 | SPACER, HYDRO | ||
| 9 | 539 120169 | ROD, CONTROL | ||
| 10 | 539 116689 | ROD END COUPLER | ||
| 11 | 539 976988 | HAIRPIN COTTER | ||
| 12 | 539 101721 | HCS 5/16-18 x 2 3/4 | ||
| 13 | 539 976938 | HCS 5/16-18 x 2 1/4 | ||
| 14 | 539 990209 | HCS 5/16-18 x 1 | ||
| 15 | 539 990629 | HCS 3/8-16 x 2 1/4 | ||
| 16 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC | ||
| 17 | 539 115502 | NUT 5/16-24 HEX JAM | ||
| 18 | 539 991073 | NUT 5/16-24 HEX JAM LT | ||
| 19 | 539 990517 | WASHER 3/8 STD FLT | ||
| 20 | 539 990188 | WASHER 5/16 SAE FLT |

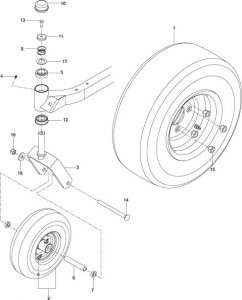

Wheels And Tires
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 581 197901 | WHEEL ASSY REAR | ||
| 2 | 581 199701 | CASTER TIRE ASSY | ||
| 3 | 539 123593 | YOKE, CASTER BLU | ||
| 4 | 539 115638 | ZERK | ||
| 5 | 539 117901 | BUSHING, CASTER | ||
| 6 | 584 653101 | SPACER | ||
| 7 | 581 269201 | SPACER 5/16 | ||
| 8 | 539 912234 | VALVE | ||
| 9 | 539 115747 | SPRING, CASTER | ||
| 10 | 539 102535 | CAP, GREASE | ||
| 11 | 539 115749 | PLUG, CASTER | ||
| 12 | 539 112660 | BEARING, FLANGED | ||
| 13 | 539 115566 | HHB 5/16-18 x 1 NYLOC | ||
| 14 | 539 121159 | RHSNB 1/2-13 x 6 1/2 | ||
| 15 | 539 101173 | NUT 1/2 LUG | ||
| 16 | 539 200100 | NUT 1/2 HEX CNTRLK | ||
| 17 | 539 115675 | WASHER | ||
| 18 | 539 109554 | WASHER 1/2 FLT |
Brake / Deck Lift
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 525 580402 | HANDLE, LIFT BLK | ||
| 2 | 574 356802 | SHAFT, LIFT BLK | ||
| 3 | 525 583601 | LINKAGE, BRAKE RT | ||
| 4 | 525 583701 | LINKAGE, BRAKE LT | ||
| 5 | 525 735701 | LINKAGE, UPPER | ||
| 6 | 539 120220 | PIVOT, BRAKE ARM | ||
| 7 | 525 485602 | HANDLE, BRAKE | ||
| 8 | 525 580201 | BELLCRANK, BRAKE | ||
| 9 | 574 356601 | ROD, BRAKE | ||
| 10 | 532 196492 | GRIP, LIFT HANDLE | ||
| 11 | 539 120921 | GRIP, BRAKE HANDLE | ||
| 12 | 539 112308 | SWIVEL, BRAKE | ||
| 13 | 539 118179 | SWIVEL | ||
| 14 | 539 101224 | SPRING | ||
| 15 | 539 115658 | L-ROD 3 1/2" | ||
| 16 | 539 976988 | HAIRPIN COTTER | ||
| 17 | 539 976989 | HAIRPIN | ||
| 18 | 539 109368 | BUSHING, PLASTIC | ||
| 19 | 539 101082 | PIN 3/16 x 1 1/4 ROLL | ||
| 20 | 539 100413 | RHSNB 3/8-16 x 1 1/4 | ||
| 21 | 539 976979 | NUT 3/8-16 HEX NYLOC | ||
| 22 | 539 990717 | NUT 5/16-18 HEX NYLOC | ||
| 23 | 539 200282 | NUT 5/16-18 HEX NYLOC | ||
| 24 | 539 102843 | WASHER 7/16 SPRING DISK | ||
| 25 | 539 990517 | WASHER 3/8 FLAT STD | ||
| 26 | 539 990188 | WASHER 5/16 FLAT STD | ||
| 27 | 539 133007 | WASHER, .825 WAVE |

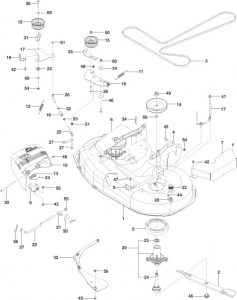

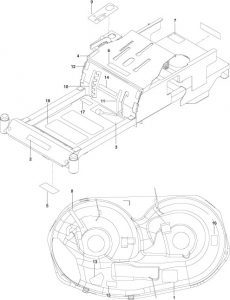

Mower Deck / Cutting Deck
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 575 699802 | DECK w/ SAFETY DECALS | ||
| 2 | 532 134149 | BLADE 42" | ||
| 3 | 581 805901 | BELT | ||
| 4 | 532 195185 | SUSPENSION ARM, REAR | ||
| 5 | 539 107518 | STRIPPER, ROUND | ||
| 6 | 575 754602 | BELT SHIELD, RT | ||
| 7 | 575 754502 | BELT SHIELD, LT | ||
| 8 | 532 192557 | BRACKET, DEFLECTOR | ||
| 9 | 532 417645 | BRACKET, CLUTCH CABLE | ||
| 10 | 532 193108 | SHIELD, DEFLECTOR | ||
| 11 | 532 401872 | SPRING, RETURN | ||
| 12 | 581 542601 | SPRING, BRAKE RETURN | ||
| 13 | 539 110328 | SPRING, TORSION | ||
| 14 | 532 195945 | PULLEY, MANDREL | ||
| 15 | 532 177968 | PULLEY, IDLER | ||
| 16 | 539 116689 | COUPLER | ||
| 17 | 574 693302 | ARM, BRAKE | ||
| 18 | 574 694502 | ARM, IDLER | ||
| 19 | 529 311801 | ARM, LT BRAKE | ||
| 20 | 532 195740 | LINK, SUSPENSION | ||
| 21 | 581 514301 | SWIVEL | ||
| 22 | 532 416405 | COUPLING, CONNECT | ||
| 23 | 532 110485 | BEARING | ||
| 24 | 532 192872 | SHAFT | ||
| 25 | 581 866301 | LINK | ||
| 26 | 581 866201 | LINK, PINNED END | ||
| 27 | 581 542701 | PLATE, ATTACHMENT | ||
| 28 | 532 415598 | PORT, WASHOUT | ||
| 29 | 532 192870 | MANDREL | ||
| 30 | 539 110462 | ROD, HINGE | ||
| 31 | 525 851801 | GUIDE, BELT | ||
| 32 | 539 110463 | BAFFLE, DECK | ||
| 33 | 577 209101 | KEEPER, BELT | ||
| 34 | 532 199092 | SPACER RETAINER | ||
| 35 | 532 165898 | RETAINER | ||
| 36 | 539 976989 | HAIRPIN#4 | ||
| 37 | 539 976935 | HCS 5/16-18 x 1 1/2 | ||
| 38 | 539 990588 | HCS 3/8-16 x 2 | ||
| 39 | 539 990730 | HCS 3/8-16 x 1 3/4 | ||
| 40 | 539 990563 | HCS 3/8-16 x 1 | ||
| 41 | 539 107630 | SCREW 5/16-18 WSH HD | ||
| 42 | 539 107631 | SCREW 1/4-20 x 5/8 | ||
| 43 | 539 990799 | RHSNB 5/16-18 x 5/8 | ||
| 44 | 539 990134 | BOLT 10-24 x 5/8 WSH HD | ||
| 45 | 539 113621 | BOLT 3/8-16 x 3/8 SKT HD | ||
| 46 | 532 193003 | BOLT, WASHER | ||
| 47 | 817 000510 | BOLT 5/16-18 | ||
| 48 | 539 110452 | PUSHNUT | ||
| 49 | 539 107590 | NUT 9/16 TOP CNTRLK | ||
| 50 | 521 996501 | NUT 3/8-16 HEX FLG NYLOC | ||
| 51 | 539 990585 | NUT 5/16-18 HEX WHIZLK | ||
| 52 | 539 991073 | NUT 5/16-24 LH THREAD | ||
| 53 | 539 990223 | NUT 5/16-24 HEX | ||
| 54 | 539 200282 | NUT 3/8-16 HEX JAM NYLOC | ||
| 55 | 573 975201 | NUT 7/16-20 HEX NYLOC | ||
| 56 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC | ||
| 57 | 539 990250 | WASHER, SAE | ||
| 58 | 539 106504 | WASHER, HEAVY | ||
| 59 | 539 107520 | WASHER, SPACER | ||
| 60 | 539 990122 | WASHER 3/8 SAE FLT | ||
| 61 | 539 990188 | WASHER 5/16 SAE FLT |

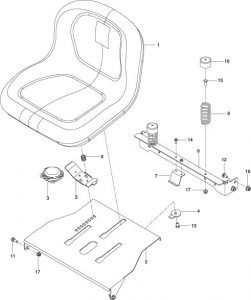

Seat
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 532 406625 | SEAT | ||
| 2 | 574 356303 | PLATE, SEAT BLU | ||
| 3 | 539 132140 | SWITCH, SEAT N/C | ||
| 4 | 574 191002 | STOP, SEAT | ||
| 5 | 532 197661 | HANDLE, SEAT SLIDE | ||
| 6 | 574 356403 | SEAT SUPPORT, REAR BLU | ||
| 7 | 525 864502 | BRACKET, FUEL TANK BLK | ||
| 8 | 539 122632 | SPRING, SEAT | ||
| 9 | 532 198200 | SPRING, SEAT SLIDE | ||
| 10 | 539 119884 | CAP, SPRING | ||
| 11 | 539 110303 | BOLT 5/16-SHOULDER | ||
| 12 | 539 111785 | RHSNB 3/8-16 x 3/4 | ||
| 13 | 539 108503 | HCS 3/8-16 x 5/8 | ||
| 14 | 539 990362 | SCREW 1/4-20 x 5/8 SLF TAP | ||
| 15 | 539 976934 | HCS 5/16-18 x 3/4 | ||
| 16 | 521 996501 | NUT 3/8-16 HEX FLG NYLOC | ||
| 17 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC |

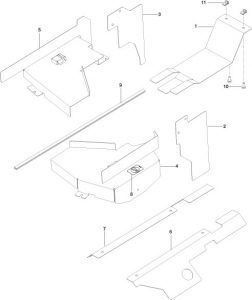

Guards
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 578 019002 | GUARD, REAR BLK | ||
| 2 | 578 019103 | GUARD, FLAT WALL LT BLK | ||
| 3 | 578 019104 | GUARD, FLAT WALL RT BLK | ||
| 4 | 578 018403 | GUARD, BELT COVER LT BLK | ||
| 5 | 578 018404 | GUARD, BELT COVER RT BLK | ||
| 6 | 578 018903 | GUARD, WALL LT BLK | ||
| 7 | 578 018904 | GUARD, WALL RT BLK | ||
| 8 | 581 724301 | DECAL, NO STEP | ||
| 9 | 539 112294 | FLEX TRIM BLK | ||
| 10 | 525 464701 | HHFS 5/16-18 x 3/4 | ||
| 11 | 539 104763 | RETAINER, U TYPE 5/16 |
Decals
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 510 240201 | DECAL, BELT ROUTING | ||
| 2 | 576 960001 | DECAL, DIXON | ||
| 3 | 539 109908 | DECAL, SAFETY GRAPHICS | ||
| 4 | 576 953701 | DECAL, PARK BRAKE | ||
| 5 | 539 109897 | DECAL, SERVICE | ||
| 6 | 539 105745 | DECAL, BATTERY WARNING | ||
| 7 | 539 108385 | DECAL, DO NOT TOW | ||
| 8 | 581 579201 | DECAL, DEFLECTOR | ||
| 9 | 576 967501 | DECAL, CONTROL PANEL | ||
| 10 | 525 814201 | DECAL, DECK HEIGHT | ||
| 11 | 525 814301 | DECAL, BLADE ENGAGE | ||
| 12 | 576 953501 | DECAL, MOTION CONTROL | ||
| 13 | 539 913010 | DECAL, BLADE WARNING | ||
| 14 | 525 865801 | DECAL, SPEEDZTR | ||
| 15 | 539 105746 | DECAL, SEVERING | ||
| 16 | 539 103491 | DECAL, 42 | ||
| 17 | 539 200759 | DECAL, SOUND POWER | ||
| 18 | 539 977778 | PAD, ABRASIVE |

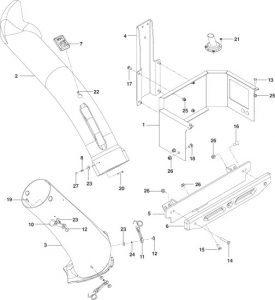

Accessories – Mounts,Weights,Chutes
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 574 031006 | GUARD, REAR | ||
| 2 | 539 108141 | CHUTE, UPPER | ||
| 3 | 575 494401 | CHUTE, LOWER | ||
| 4 | 574 031102 | BRACKET, HANGER | ||
| 5 | 574 255502 | BRACKET, WEIGHT | ||
| 6 | 539 113177 | CAST WEIGHT | ||
| 7 | 539 108082 | BAG INDICATOR | ||
| 8 | 539 108085 | SPACER, SPLIT | ||
| 9 | 539 131601 | EXTENSION, MUFFLER | ||
| 10 | 539 108088 | LATCH, HOOD | ||
| 11 | 539 108194 | LATCH ASSY | ||
| 12 | 539 108089 | PLATED, WELD NUT | ||
| 13 | 539 990206 | HCS 5/16-18 x 3/4 | ||
| 14 | 539 990629 | HCS 3/8-16 x 2 1/4 | ||
| 15 | 539 990645 | RHSNB 3/8-16 x 1 | ||
| 16 | 539 100413 | RHSNB 3/8-16 x 1 1/4 | ||
| 17 | 539 990316 | RHSNB 5/16-18 x 3/4 | ||
| 18 | 539 111785 | RHSNB 5/16-18 x 3/4 | ||
| 19 | 539 976952 | SCREW #10-24 x 5/8 | ||
| 20 | 539 108083 | SCREW #10-24 x 11/8 | ||
| 21 | 539 115537 | SCREW #10-16 x 1/2 | ||
| 22 | 539 108081 | SCREW #10-14 x 1/2 | ||
| 23 | 539 108084 | WASHER 3/16 x 3/4 x 16 GA | ||
| 24 | 539 109552 | WASHER 3/16 LOCK | ||
| 25 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC | ||
| 26 | 521 996501 | NUT 3/8-16 HEX FLG | ||
| 27 | 539 108086 | NUT #10-24 ACORN |

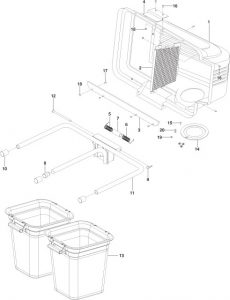

Accessories – Bagger
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 539 111139 | COVER ASSY | ||
| 2 | 532 127533 | SCREEN, COVER | ||
| 3 | 532 155042 | STRIP, REINFORCEMENT | ||
| 4 | 532 130895 | LATCH HANDLE, COVER | ||
| 5 | 532 132796 | SPRING, COVER, LH | ||
| 6 | 532 132983 | SPRING, COVER RH | ||
| 7 | 532 133235 | SPACER, COVER | ||
| 8 | 522 801301 | SPACER, PLUG | ||
| 9 | 532 085902 | RETAINER, SPRING | ||
| 10 | 532 174083 | CAP, TUBING END | ||
| 11 | 532 179746 | BAGGER, FRAME | ||
| 12 | 532 128600 | PIN, HINGE | ||
| 13 | 532 400226 | CONTAINER, SOFT BAG | ||
| 14 | 532 127534 | GASKET | ||
| 15 | 539 106312 | SCREW 10-24 x 3/4 HEX GR 2 | ||
| 16 | 539 976952 | SCREW 10-24 x 5/8 | ||
| 17 | 539 108081 | SCREW 10-24 x 1/2 | ||
| 18 | 539 108086 | NUT 10-24 ACORN | ||
| 19 | 539 976977 | NUT 10-24 HEX NYLOC | ||
| 20 | 539 105408 | WASHER 10 FLAT |

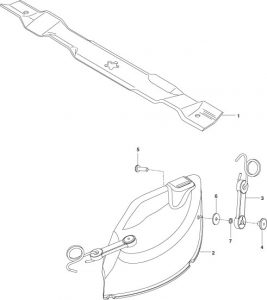

Accessories – Mulch Kit
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 532 134149 | BLADE, MULCH | ||
| 2 | 532 193107 | PLATE, MULCHER | ||
| 3 | 539 108194 | LATCH ASSY | ||
| 4 | 539 108089 | WELD NUT, PLATED | ||
| 5 | 539 976952 | SCREW 10-24 x 5/8 | ||
| 6 | 539 108084 | WASHER 3/16 x 3/4 16 GA | ||
| 7 | 539 109552 | WASHER 3/16 LOCK |
