Dixon ZTR-SpeedZTR 30BF

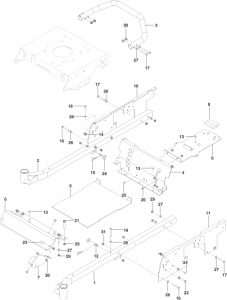

Frame
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 525 454703 | FRAME TUBE, LT BLU | ||
| 2 | 525 454903 | FRAME TUBE, RT BLU | ||
| 3 | 525 865903 | BAR, IMPACT BLU | ||
| 4 | 575 852103 | PANEL, SEAT SUPPORT BLU | ||
| 5 | 576 452402 | FOOT PLATE W/ DECLS BLU | ||
| 6 | 522 740706 | FOOT REST BLU | ||
| 7 | 525 605502 | BRACKET, FRONT DECK BLK | ||
| 8 | 539 110290 | FOAM STRIP | ||
| 9 | 525 798402 | SUPPORT, TANK BLK | ||
| 10 | 575 328403 | PLATE, RT BLU | ||
| 11 | 575 328303 | PLATE, LT BLU | ||
| 12 | 532 195161 | STUD 3W/ ANTI-ROTATE | ||
| 13 | 539 102587 | GROMMET, BUMPER | ||
| 14 | 539 104763 | RETAINER, U TYPE | ||
| 15 | 539 976989 | HAIRPIN | ||
| 16 | 874 780536 | HCS 5/16-18 x 2 1/4 | ||
| 17 | 874 780636 | HCS 3/8-16 x 2 1/4 | ||
| 18 | 874 780512 | HCS 5/16-18 x 3/4 | ||
| 19 | 874 780544 | HCS 5/16-18 x 2 3/4 | ||
| 20 | 817 490410 | SCREW 1/4-20 x 5/8 SLF TAP | ||
| 21 | 874 490644 | HHFS 3/8-16 x 2 3/4 | ||
| 22 | 874 780844 | HCS 1/2-13 x 2 3/4 | ||
| 23 | 872 140608 | RHSNB 3/8-16 x 1 | ||
| 24 | 872 140606 | RHSNB 3/8-16 x 3/4 | ||
| 25 | 872 140506 | RHSNB 5/16-18 x 3/4 | ||
| 26 | 819 111116 | WASHER 5/16 SAE FLT | ||
| 27 | 819 131316 | WASHER 3/8 SAE FLT | ||
| 28 | 819 212113 | WASHER 5/8 SAE FLT | ||
| 29 | 539 200282 | NUT 3/8-16 HEX JAM NYLOC | ||
| 30 | 521 996501 | NUT 3/8-16 HEX FLG NYLOC | ||
| 31 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC |

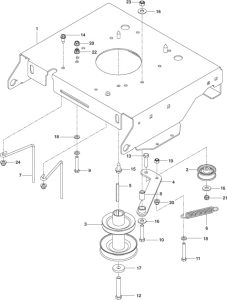

Engine Plate
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 525 462607 | PLATE, ENGINE BLU | ||
| 2 | 539 120812 | PULLEY, IDLER | ||
| 3 | 574 872801 | PULLEY, ENGINE | ||
| 4 | 539 120990 | IDLER, BLK | ||
| 5 | 539 917033 | KEY 1/4 SQ x 2 1/2 LG | ||
| 6 | 539 116350 | SPRING 3 1/2 | ||
| 7 | 574 172901 | GUIDE, BELT | ||
| 8 | 539 115270 | BUSHING, METAL | ||
| 9 | 539 108395 | HCS 5/16-18 x 2 | ||
| 10 | 874 780632 | HCS 3/8-16 x 2 | ||
| 11 | 874 780536 | HCS 5/16-18 x 2 1/4 | ||
| 12 | 539 110065 | HCS 7/16-20 x 2 3/4 | ||
| 13 | 874 780624 | HCS 3/8-16 x 1 1/2 | ||
| 14 | 817 490616 | BOLT 3/8-16 x 1 THD FRM | ||
| 15 | 817 120616 | SCREW 3/8-16 x 1 THD FRM | ||
| 16 | 819 141614 | WASHER 3/8 FLAT STD | ||
| 17 | 539 115546 | WASHER | ||
| 18 | 819 111116 | WASHER 5/16 SAE FLAT | ||
| 19 | 873 800500 | NUT 5/16-18 HEX NYLOC | ||
| 20 | 539 990585 | NUT 5/16-18 HEX WHIZLK | ||
| 21 | 539 200282 | NUT 3/8-16 HEX JAM NYLOC | ||
| 22 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC | ||
| 23 | 539 976979 | NUT 3/8-16 HEX NYLOC | ||
| 24 | 521 996501 | NUT 3/8-16 HEX FLG NYLOC |

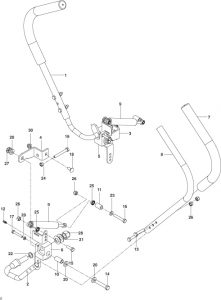

Steering
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 539 120159 | LOWER LEVER, RT | ||
| 2 | 539 120162 | LOWER LEVER, LT | ||
| 3 | 539 117949 | SUPPORT, STEER CNTRL RT | ||
| 4 | 539 117950 | SUPPORT, STEER CNTRL LT | ||
| 5 | 539 120984 | PIVOT, RT | ||
| 6 | 539 120983 | PIVOT, LT | ||
| 7 | 539 120899 | GRIP | ||
| 8 | 539 120160 | LEVER, UPPER | ||
| 9 | 539 114453 | DAMPENER | ||
| 10 | 539 120956 | BUSHING 1/2 ID x 3/4 OD | ||
| 11 | 539 119087 | BUSHING | ||
| 12 | 539 115638 | ZERK | ||
| 13 | 874 780524 | HCS 5/16-18 x 1 1/2 | ||
| 14 | 874 780844 | HCS 1/2-13 x 2 3/4 | ||
| 15 | 874 780516 | HCS 5/16-18 x 1 | ||
| 16 | 874 780532 | HCS 5/16-18 x 2 | ||
| 17 | 874 780428 | HCS 1/4-20 x 1 3/4 | ||
| 18 | 872 140506 | RHSNB 5/16-18 x 3/4 | ||
| 19 | 874 780540 | HCS 5/16-18 x 2 1/2 TPBLT | ||
| 20 | 819 171713 | WASHER 1/2 SAE | ||
| 21 | 539 911121 | WASHER 5/8 BELLEVILLE | ||
| 22 | 539 115570 | WASHER, SPECIAL | ||
| 23 | 819 111116 | WASHER 5/16 SAE FLT | ||
| 24 | 873 220500 | NUT 5/16-18 HEX | ||
| 25 | 539 990585 | NUT 5/16-18 HEX WHIZLK | ||
| 26 | 873 800500 | NUT 5/16-18 HEX NYLOC | ||
| 27 | 539 108010 | NUT 1/2-13 JAM NYLOC GR 2 | ||
| 28 | 539 110340 | NUT 5/8-11 NYLOC | ||
| 29 | 873 350400 | NUT 1/4-20 JAM | ||
| 30 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC |

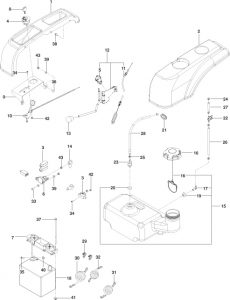

Fuel System
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 539 120193 | FENDER, RH | ||
| 2 | 539 120192 | FENDER, LH | ||
| 3 | 532 109553 | SWITCH | ||
| 4 | 539 107541 | SWITCH, IGNITION | ||
| 5 | 532 176138 | SWITCH, INTERLOCK | ||
| 6 | 539 101714 | SOLENOID | ||
| 7 | 539 107628 | HOLD DOWN, BATTERY | ||
| 8 | 539 107544 | KEY, IGNITION | ||
| 9 | 525 598601 | MOUNT, CONTROL BLK | ||
| 10 | 539 120222 | CABLE, THROTTLE | ||
| 11 | 585 053801 | CABLE, CLUTCH | ||
| 12 | 585 057901 | CLUTCH ASSY W/ CABLE | ||
| 13 | 539 132624 | KNOB, CLUTCH | ||
| 14 | 532 131563 | TERMINAL COVER, SM | ||
| 15 | 576 646403 | TANK ASSY, FUEL | ||
| 16 | 575 018101 | CAP, FUEL W/ TETHER | ||
| 17 | 539 110432 | ELBOW | ||
| 18 | 539 102436 | BATTERY | ||
| 19 | 539 105245 | GROMMET, TANK | ||
| 20 | 576 618201 | GROMMET, CHECK VALVE | ||
| 21 | 539 105974 | GROMMET, RUBBER | ||
| 22 | 539 916325 | VALVE, FUEL | ||
| 23 | 576 618101 | VALVE, FUEL CHECK | ||
| 24 | 532 123487 | CLAMP, HOSE | ||
| 25 | 575 436501 | CLAMP, HOSE | ||
| 26 | 539 115736 | HOSE 1/4 x 8 | ||
| 27 | 539 121486 | HOSE, 1/4 x 2 | ||
| 28 | 574 521305 | HOSE, FUEL, 3/16" x 20" | ||
| 29 | 505 280001 | WIRE TIE w/ CLIP | ||
| 30 | 539 104974 | CABLE, POSITIVE 31" | ||
| 31 | 539 103306 | CABLE, POSITIVE 19" | ||
| 32 | 539 110068 | CABLE, NEGATIVE 25" | ||
| 33 | 874 780412 | HCS 1/4-20 x 3/4 | ||
| 34 | 539 976952 | SCREW #10-24 x 5/8 | ||
| 35 | 872 140506 | RHSNB 5/16-18 x 3/4 | ||
| 36 | 872 110406 | RHSNB 1/4-20 x 3/4 GR 2 | ||
| 37 | 532 45211 | BOLT 1/4 x 7 1/2 | ||
| 38 | 817 490410 | SCREW 1/4-20 x SLF TAP | ||
| 39 | 819 091016 | WASHER 1/4 FLT SAE | ||
| 40 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC | ||
| 41 | 539 107629 | NUT 1/4 PUSH NYLON | ||
| 42 | 539 976977 | NUT #10-24 HEX NYLOC | ||
| 43 | 873 800400 | NUT 1/4-20 HEX NYLOC | ||
| 525 744301 | WIRING HARNESS | NOT SHOWN |

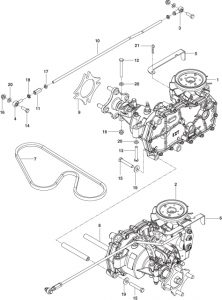

Hydraulic Pump – Motor
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 539 120152 | HYDRO, RH | ||
| 2 | 539 120153 | HYDRO, LH | ||
| 3 | 539 115729 | ROD END, RH | ||
| 4 | 539 116690 | ROD END, MALE LH | ||
| 5 | 539 120157 | RELEASE HANDLE, RH | ||
| 6 | 539 120156 | RELEASE HANDLE, LH | ||
| 7 | 539 120806 | BELT, EZT | ||
| 8 | 539 120154 | SPACER, HYDRO | ||
| 9 | 539 114804 | SPACER, WHEEL | ||
| 10 | 539 120169 | ROD, CONTROL | ||
| 11 | 539 116689 | ROD END COUPLER | ||
| 12 | 874 780544 | HCS 5/16-18 x 2 3/4 | ||
| 13 | 874 780536 | HCS 5/16-18 x 2 1/4 | ||
| 14 | 874 780516 | HCS 5/16-18 x 1 | ||
| 15 | 874 780636 | HCS 3/8-16 x 2 1/4 | ||
| 16 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC | ||
| 17 | 873 360500 | NUT 5/16-24 HEX JAM | ||
| 18 | 873 700500 | NUT 5/16-24 HEX JAM LH | ||
| 19 | 819 141614 | WASHER 3/8 STD FLT | ||
| 20 | 819 111116 | WASHER 5/16 SAE FLT | ||
| 21 | 539 976988 | HAIRPIN COTTER |

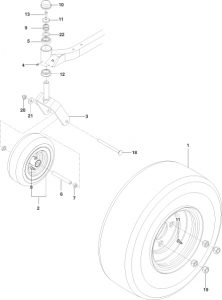

Wheels / Tires
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 581 199001 | WHEEL ASSY REAR | ||
| 2 | 581 199701 | CASTER TIRE ASSY | ||
| 3 | 539 123593 | YOKE, CASTER BLU | ||
| 4 | 539 115638 | ZERK | ||
| 5 | 539 117901 | BUSHING, CASTER | ||
| 6 | 539 105543 | SPACER | ||
| 7 | 539 114805 | SPACER 5/16 | ||
| 8 | 539 912234 | VALVE | ||
| 9 | 539 115747 | SPRING, CASTER | ||
| 10 | 539 102535 | CAP, GREASE | ||
| 11 | 539 115749 | PLUG, CASTER | ||
| 12 | 539 112660 | BEARING, FLANGED | ||
| 13 | 874 950516 | HHB 5/16-18 x 1 NYLOC | ||
| 14 | 721 408104 | RHSNB 1/2-13 x 6 1/2 | ||
| 15 | 539 101173 | NUT 1/2-20 LUG | ||
| 16 | 539 200100 | NUT 1/2 HEX CNTRLK | ||
| 17 | 873 930800 | WASHER | ||
| 18 | 819 182212 | WASHER 1/2 FLAT |
Brake / Deck Lift
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 525 580402 | HANDLE, LIFT BLK | ||
| 2 | 525 580604 | SHAFT, LIFT BLK | ||
| 3 | 525 583601 | LINKAGE, BRAKE RT | ||
| 4 | 525 583701 | LINKAGE, BRAKE LT | ||
| 5 | 525 735701 | LINKAGE, UPPER | ||
| 6 | 539 120220 | PIVOT, BRAKE ARM | ||
| 7 | 525 485602 | HANDLE, BRAKE | ||
| 8 | 525 580201 | BELLCRANK, BRAKE | ||
| 9 | 525 580301 | ROD, BRAKE | ||
| 10 | 532 445060 | GRIP, LIFT HANDLE | ||
| 11 | 539 120921 | GRIP, BRAKE HANDLE | ||
| 12 | 539 112308 | SWIVEL, BRAKE | ||
| 13 | 539 118179 | SWIVEL | ||
| 14 | 539 101224 | SPRING | ||
| 15 | 539 115658 | L-ROD 3 1/2" | ||
| 16 | 539 976988 | HAIRPIN COTTER | ||
| 17 | 539 976989 | HAIRPIN | ||
| 18 | 539 109368 | BUSHING, PLASTIC | ||
| 19 | 539 101082 | PIN 3/16 x 1 1/4 ROLL | ||
| 20 | 872 140610 | RHSNB 3/8-16 x 1 1/4 | ||
| 21 | 539 976979 | NUT 3/8-16 HEX NYLOC | ||
| 22 | 873 800500 | NUT 5/16-18 HEX NYLOC | ||
| 23 | 539 200282 | NUT 3/8-16 HEX JAM NYLOC | ||
| 24 | 539 102843 | WASHER 7/16 SPRING DISK | ||
| 25 | 819 141614 | WASHER 3/8 FLAT STD | ||
| 26 | 819 111116 | WASHER 5/16 SAE FLAT | ||
| 27 | 539 133007 | WASHER, .825 WAVE |

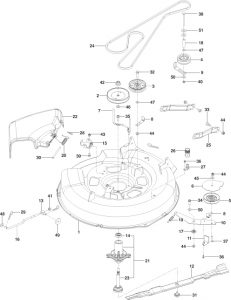

Mower Deck / Cutting Deck
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 574 453402 | DECK W/ SAFETY DECALS | ||
| 2 | 532 199791 | PULLEY, MANDREL | ||
| 3 | 532 175820 | PULLEY, IDLER | ||
| 4 | 539 110311 | PULLEY, DECK IDLER | ||
| 5 | 532 173902 | IDLER, V-GROOVE | ||
| 6 | 573 970402 | COVER, PULLEY | ||
| 7 | 532 400140 | KEEPER, BELT | ||
| 8 | 532 420253 | KEEPER, BELT | ||
| 9 | 525 851801 | GUIDE, BELT | ||
| 10 | 585 053902 | ARM, IDLER BLK | ||
| 11 | 532 199470 | ARM, LT BRAKE | ||
| 12 | 532 419274 | BLADE, MOWER/MULCH | ||
| 13 | 581 514301 | SWIVEL | ||
| 14 | 532 110485 | BEARING, BALL | ||
| 15 | 532 192557 | BRACKET, DEFLECTOR | ||
| 16 | 532 195740 | LINK, SUSPENSION | ||
| 17 | 532 199092 | SPACER RETAINER | ||
| 18 | 525 848801 | SPACER 2 1/4 | ||
| 19 | 532 401872 | SPRING, RETURN | ||
| 20 | 532 178102 | SPRING, TORSION | ||
| 21 | 532 192870 | MANDREL | ||
| 22 | 532 417344 | CHUTE, DISCHARGE | ||
| 23 | 532 192872 | SHAFT | ||
| 24 | 585 054001 | BELT, DECK | ||
| 25 | 532 195185 | ARM, DECK SUSPENSION | ||
| 26 | 532 416405 | COUPLING, QUICK DISC | ||
| 27 | 532 415598 | WASHOUT PORT | ||
| 28 | 539 976988 | HAIRPIN COTTER | ||
| 29 | 539 976989 | HAIRPIN | ||
| 30 | 539 110736 | PIN, CLEVIS 5/16 | ||
| 31 | 532 193003 | BOLT/WASHER | ||
| 32 | 539 990701 | BOLT 3/8-16 x 1 3/4 WHIZLK | ||
| 33 | 539 113621 | BOLT 3/8-16 x 3/8 SKT HD | ||
| 34 | 817 490624 | BOLT 3/8-16 x 1 1/2 THD FRM | ||
| 35 | 532 173984 | SCREW 5/16-18 WASHER HD | ||
| 36 | 817 490408 | SCREW 1/4-20 x 1/2 THDROLL | ||
| 37 | 874 780632 | HCS 3/8-16 x 2 | ||
| 38 | 525 848601 | RHSNB 3/8-16 x 4 | ||
| 39 | 872 110505 | RHSNB 5/16-18 x 5/8 | ||
| 40 | 873 350600 | NUT 3/8-16 HEX JAM | ||
| 41 | 573 975201 | NUT 7/16-20 HEX NYLOC | ||
| 42 | 532 400234 | NUT 9/16 TOP CNTRLK | ||
| 43 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC | ||
| 44 | 521 996501 | NUT 3/8-16 HEX FLG NYLOC | ||
| 45 | 819 131316 | WASHER 3/8 SAE FLT | ||
| 46 | 532 187690 | WASHER/SPACER | ||
| 47 | 539 109562 | WASHER 3/8 x 3/4 | ||
| 48 | 819 171713 | WASHER 1/2 SAE | ||
| 49 | 539 106504 | WASHER 1 3/4 x 1/4 HEAVY | ||
| 50 | 819 141614 | WASHER 3/8 FLAT STD | ||
| 51 | 539 104864 | WASHER 7/16 FLAT |
Seat
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 532 406625 | SEAT | ||
| 2 | 525 464601 | SEAT SUPPORT, REAR BLU | ||
| 3 | 525 864502 | BRACKET, FUEL TANK BLK | ||
| 4 | 539 122632 | SPRING, SEAT | ||
| 5 | 532 198200 | SPRING, SEAT SLIDE | ||
| 6 | 525 580003 | PLATE, SEAT BLU | ||
| 7 | 539 132140 | SWITCH, SEAT N/C | ||
| 8 | 574 191002 | STOP, SEAT BLK | ||
| 9 | 532 197661 | HANDLE, SEAT SLIDE | ||
| 10 | 539 119884 | CAP, SPRING | ||
| 11 | 539 110303 | BOLT 5/16-SHOULDER | ||
| 12 | 874 780610 | HCS 3/8-16 x 5/8 | ||
| 13 | 874 780512 | HCS 5/16-18 x 3/4 | ||
| 14 | 817 490410 | SCREW 1/4-20 x 5/8 SLF TAP | ||
| 15 | 872 140606 | RHSNB 3/8-16 x 3/4 | ||
| 16 | 539 112899 | NUT 5/16-18 HEX FLANGE NYL | ||
| 17 | 521 996501 | NUT 3/8-16 HEX FLG NYLOC |

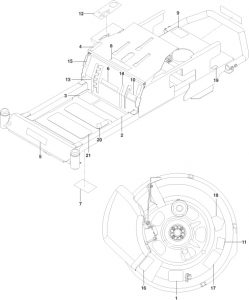

Decals
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 525 798501 | DECAL, BELT ROUTING | ||
| 2 | 539 109908 | DECAL, SAFETY GRAPHICS | ||
| 3 | 539 113213 | DECAL, WARNINGS | ||
| 4 | 576 953701 | DECAL, PARK BRAKE | ||
| 5 | 576 960001 | DECAL, DIXON | ||
| 6 | 525 865801 | DECAL, SPEEDZTR | ||
| 7 | 539 109897 | DECAL, SERVICE | ||
| 8 | 539 105745 | DECAL, BATTERY WARNING | ||
| 9 | 539 108385 | DECAL, DO NOT TOW | ||
| 10 | 539 117709 | DECAL, FLAG | ||
| 11 | 576 968303 | DECAL, 30 | ||
| 12 | 576 967501 | DECAL, CONTROL PANEL | ||
| 13 | 525 814201 | DECAL, DECK HEIGHT | ||
| 14 | 525 814301 | DECAL, BLADE ENGAGE | ||
| 15 | 576 953501 | DECAL, MOTION CONTROL | ||
| 16 | 581 724401 | DECAL, DEFLECT CAUTION | ||
| 17 | 539 105746 | DECAL, SEVERING | ||
| 18 | 539 913010 | DECAL, BLADE WARN | ||
| 19 | 539 110279 | DECAL, ECM | ||
| 20 | 532 124433 | DECAL, DB80 | ||
| 21 | 539 977778 | PAD, ABRASIVE |

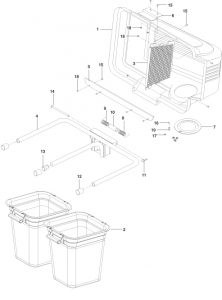

Accessories – Bagger
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 539 111139 | COVER ASSY, COMPLETE | ||
| 2 | 532 400226 | CONTAINER, SOFT BAG | ||
| 3 | 532 127533 | SCREEN, COVER | ||
| 4 | 532 179746 | BAGGER, FRAME | ||
| 5 | 532 155042 | STRIP, REINFORCEMENT | ||
| 6 | 532 130895 | LATCH HANDLE, COVER | ||
| 7 | 532 127534 | GASKET | ||
| 8 | 532 132796 | SPRING, COVER LH | ||
| 9 | 532 132983 | SPRING, COVER RH | ||
| 10 | 532 133235 | SPACER, COVER | ||
| 11 | 539 108096 | HAIRPIN, RETAINER | ||
| 12 | 539 108097 | CAP, TUBING END | ||
| 13 | 522 801301 | SPACER PLUG | ||
| 14 | 532 192786 | PIN, HINGE | ||
| 15 | 539 976952 | SCREW #10-24 x 5/8 | ||
| 16 | 539 106312 | SCREW #10-24 x 3/4 | ||
| 17 | 539 976977 | NUT #10-24 HEX NYLOC | ||
| 18 | 539 108086 | NUT #10-24 ACORN | ||
| 19 | 539 105408 | WASHER #10 FLAT |

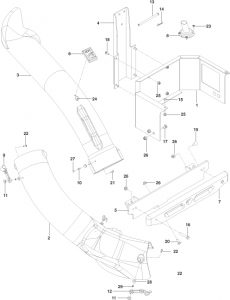

Accessories – Mounts,Weights,Chutes
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 574 031003 | GUARD, REAR | ||
| 2 | 573 975801 | CHUTE, LOWER | ||
| 3 | 539 108141 | CHUTE, UPPER | ||
| 4 | 574 031102 | BRACKET, HANGER | ||
| 5 | 574 255502 | BRACKET, WEIGHT | ||
| 6 | 539 108082 | BAG INDICATOR | ||
| 7 | 539 113177 | CAST WEIGHT | ||
| 8 | 539 131601 | EXTENSION, MUFFLER | ||
| 9 | 539 108088 | LATCH, HOOD | ||
| 10 | 539 108085 | SPACER, SPLIT | ||
| 11 | 539 108089 | WELDNUT, PLATED | ||
| 12 | 539 108194 | LATCH ASSY | ||
| 13 | 539 110736 | PIN, CLEVIS 5/16 x 5.19 | ||
| 14 | 539 976988 | COTTER HAIRPIN | ||
| 15 | 539 976934 | HCS 5/16-18 x 3/4 | ||
| 16 | 539 990629 | HCS 3/8-16 x 2 1/4 | ||
| 17 | 539 111785 | RHSNB 3/8-16 x 3/4 | ||
| 18 | 539 990316 | RHSNB 5/16-18 x 3/4 | ||
| 19 | 539 990645 | RHSNB 3/8-16 x 1 | ||
| 20 | 539 100413 | RHSNB 3/8-16 x 1 1/4 | ||
| 21 | 539 108083 | SCREW #10- 24 x 11/8 | ||
| 22 | 539 976952 | SCREW #10-24 x .625 | ||
| 23 | 539 115537 | SCREW, HEX WASHER HD | ||
| 24 | 539 108081 | SCREW, SPECIAL #10-14 x 1/2 | ||
| 25 | 539 112899 | NUT 5/16-18 HEX FLG NYLOC | ||
| 26 | 521 996501 | NUT 3/8-16 HEX FLG NYLOC | ||
| 27 | 539 108086 | NUT #10- 24 ACORN | ||
| 28 | 539 108084 | WASHER 3/16 x 3/4 x 16 GA | ||
| 29 | 539 109552 | WASHER 3/16 LOCK |

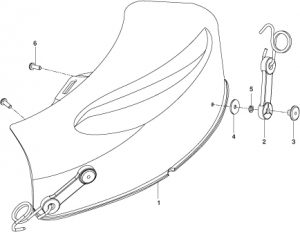

Accessories – Mulch Kit
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 532 421717 | COVER | ||
| 2 | 532 160793 | LATCH ASSY | ||
| 3 | 539 108089 | WELDNUT, PLATED | ||
| 4 | 819 031216 | WASHER | ||
| 5 | 810 071000 | WASHER LOCK | ||
| 6 | 871 081010 | SCREW |
